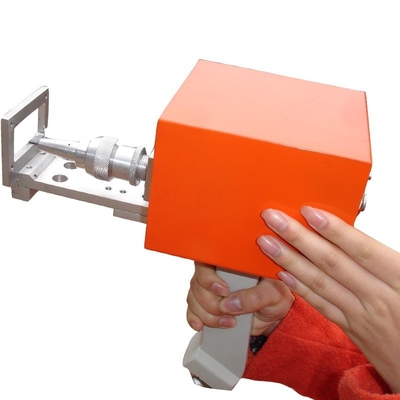

High Quality Portable Metal Handheld Dot Peen Marking Machine
We are 12 years factory, 8 years export experience,providing one stop service,machine customized,have No complaints on alibaba.
|
Marking speed |
2-5 characters(2x2mm)/s |
|
Stroke Frequency |
300times/s |
|
Marking depth |
0.01 to 1mm (Vary to the material) |
|
Marking contents |
Alphanumeric info, Data Matrix or dot matrix 2D codes, Shift codes, Barcode, Serial Number, Date, VIN Code, Time, Letter, Figure, Logo, Graphics and etc. |
|
Stylus Pin Hardness |
HRA92/HRA93 |
|
Marking area |
80x40mm,130x30mm,140x80mm,200x200mm |
|
Dimensions |
140x20x240mm |
|
Marking materials |
below HRC60 metallic and nonmetallic materials , above HRC60 need special stylus |
|
Repeat accuracy |
0.02-0.04mm |
|
Power |
300W |
|
Work voltage |
AC 110V 60HZ or AC220V 50HZ |
|
Compressed Air( Pneumatic Air) |
0.2-0.6Mpa |
|
Connection |
USB and RS-232 |
|
Controller |
7"LCD touch screen controller |
|
Power type |
Pneumatic |
|
Marking directions |
up, down, left, right, and the circular arc surface marking |
|
Gross weight |
13KG |
We have specialized in laser marking machine,pneumatic marking machine for 12 years.we have supply marking machine parts for more than Hundreds of marking machine supplier in this world.
And we are the assigned supplier of Changan ,Xinyuan,Chuanyi.We have export to the United Kingdom, Spain, France, Germany, the United States, Dubai and Brazil, South Korea and other more than 30 countries and regions.
We have supply marking sulotion for these company
We have two types of packing: suit for air and ocean transportation.
We offer 24 hours of on-line professional service
